Elevate Your Response: Integrated Fire & Drone Solutionfor Urban Crisis Management
Concept & Mission Profile

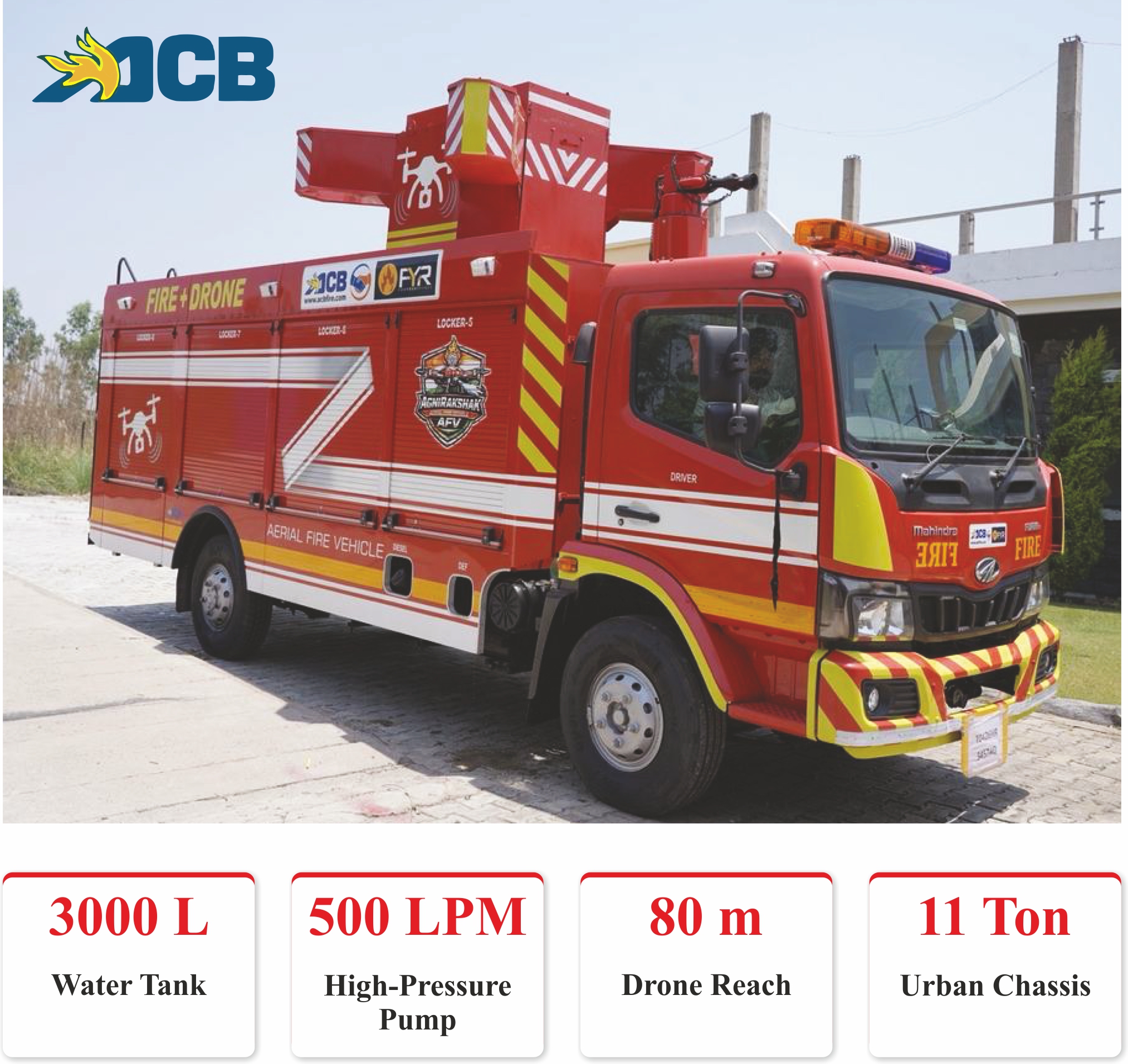

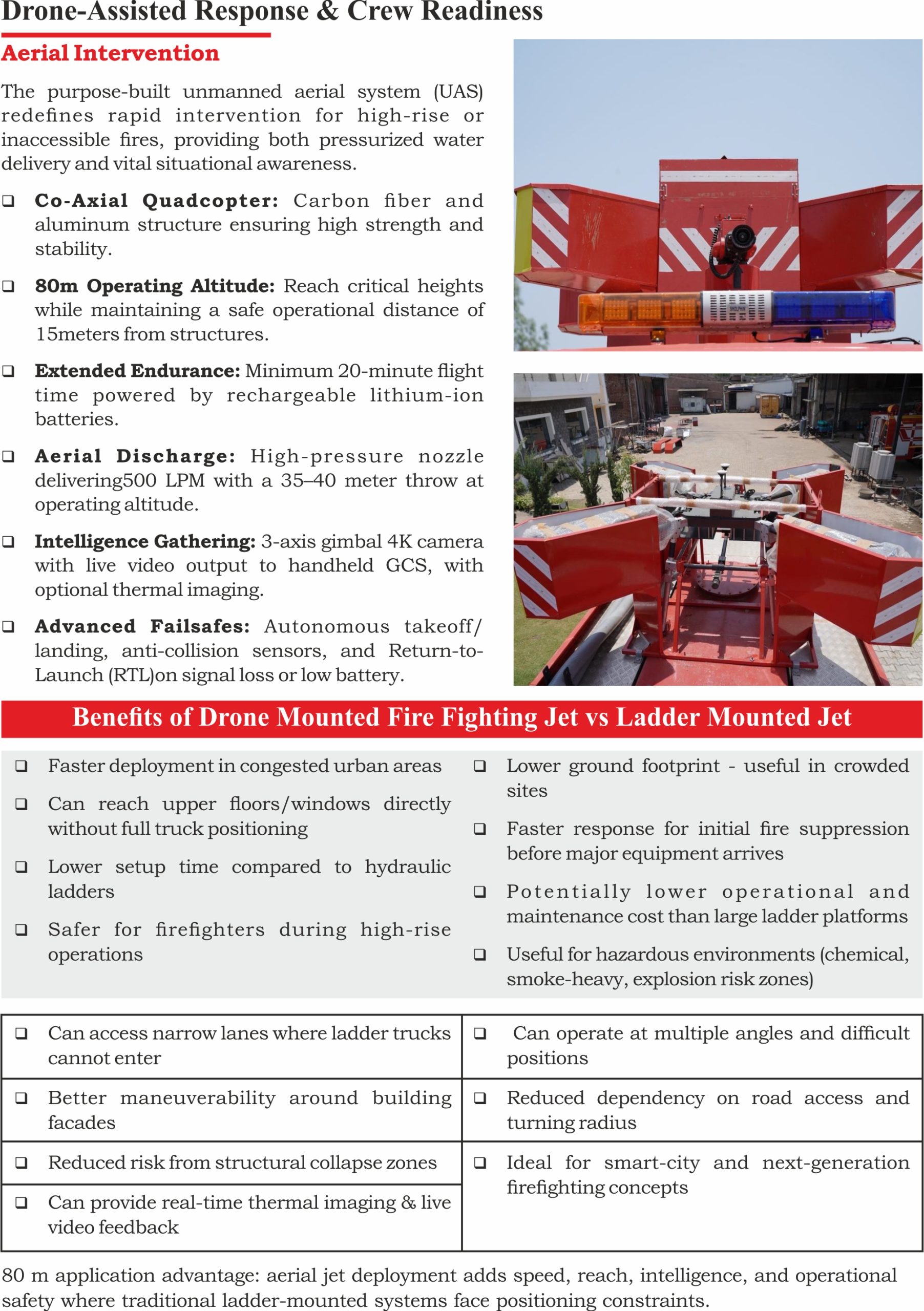

The Medium Fire and Drone Integration Vehicle represents the next evolution in municipal firefighting. Specifically designed for ease of maneuverability in dense urban environments, this highly capable 11-ton chassis grants unprecedented access to narrow streets and congested areas. By bridging the gap between ground-based firefighting and inaccessible high-rise targets, this tender introduces a fully integrated aerial drone system capable of operating up to 80 meters above ground. Paired with a potent high-pressure pump system, remote-controlled monitor, and robust onboard water storage, this vehicle ensures modern fireservices are fully equipped to manage complex, multi-dimensional emergencies where traditional apparatus fall short.
Remote Controlled Monitor Roof
Mounted monitor constructed from hard-coat anodized aluminum, delivering up to 1,000 LPM with a 340°horizontal rotation, 90° elevation, and an impressive 35–40 meter throw.

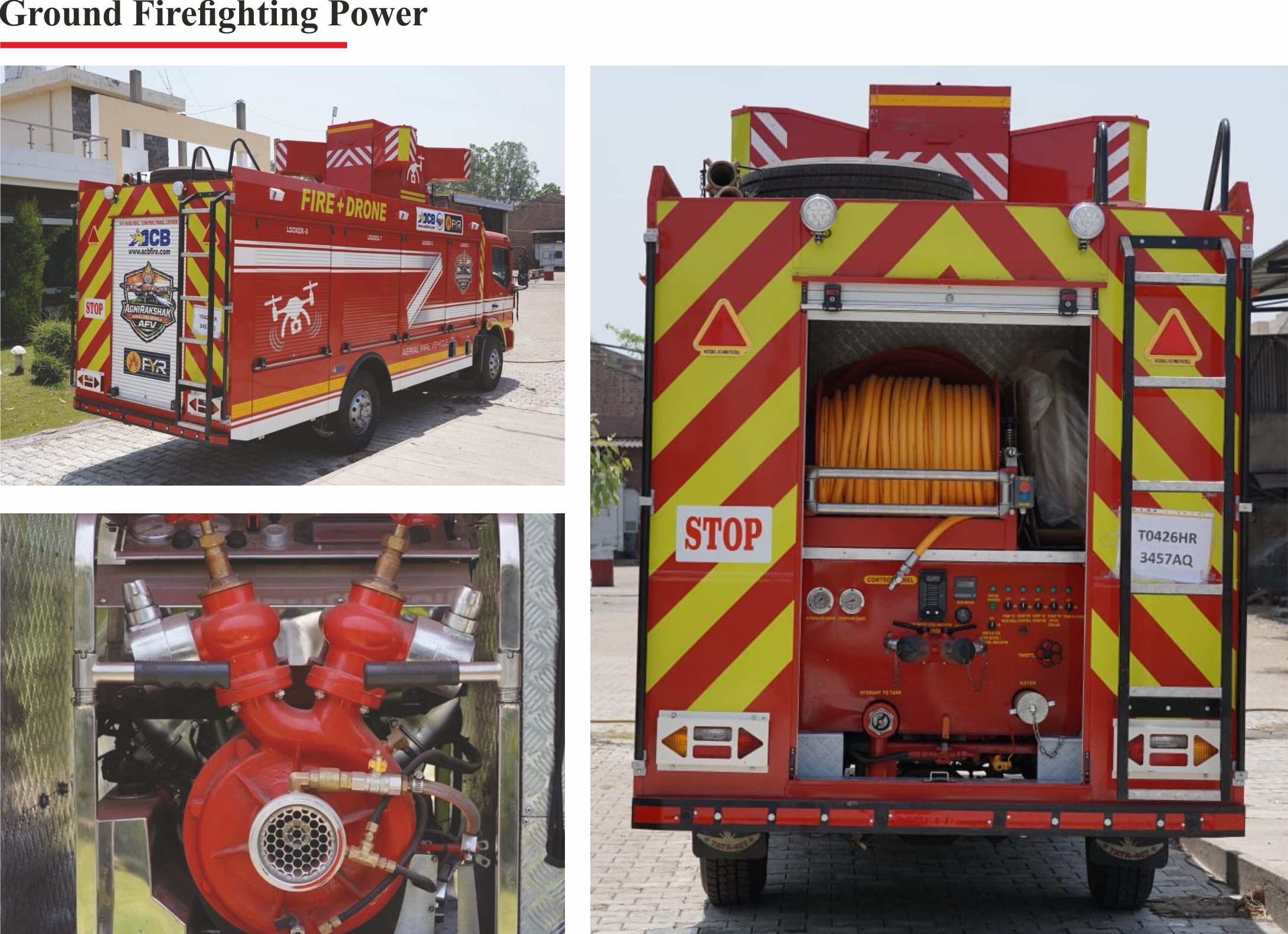

Dual 100m Hose Reels
Two heavy-duty hose reels equipped with specialized fog/jet guns capable of discharging 150 LPM at 30 bar for maximum operational flexibility.
3000 L Anti-Corrosion Water Tank
Zinc-plated mild steel tank with epoxy treatment and internal baffling to prevent water surge during high-speed urban maneuvering.
High-Pressure Suppression
Engineered to deliver sustained and powerful water streams, the vehicle’s core pumping system is designed for high-rise,confined, and heavy industrial spaces.
500 LPM Positive Displacement Pump
High-pressure rotary fire pump capable of stable operation across ranges, providing a total head of approx. 350 meters.
Up to 30 Bar Working Pressure
With an endurance pressure capability of 35 bar, guaranteeing penetrating water delivery where it is needed most.
Ergonomic Pump Control Panel
Weatherproof digital RPM meter, LED level indicators, and logically grouped electronic valve controls ensuring single-operator functionality.
